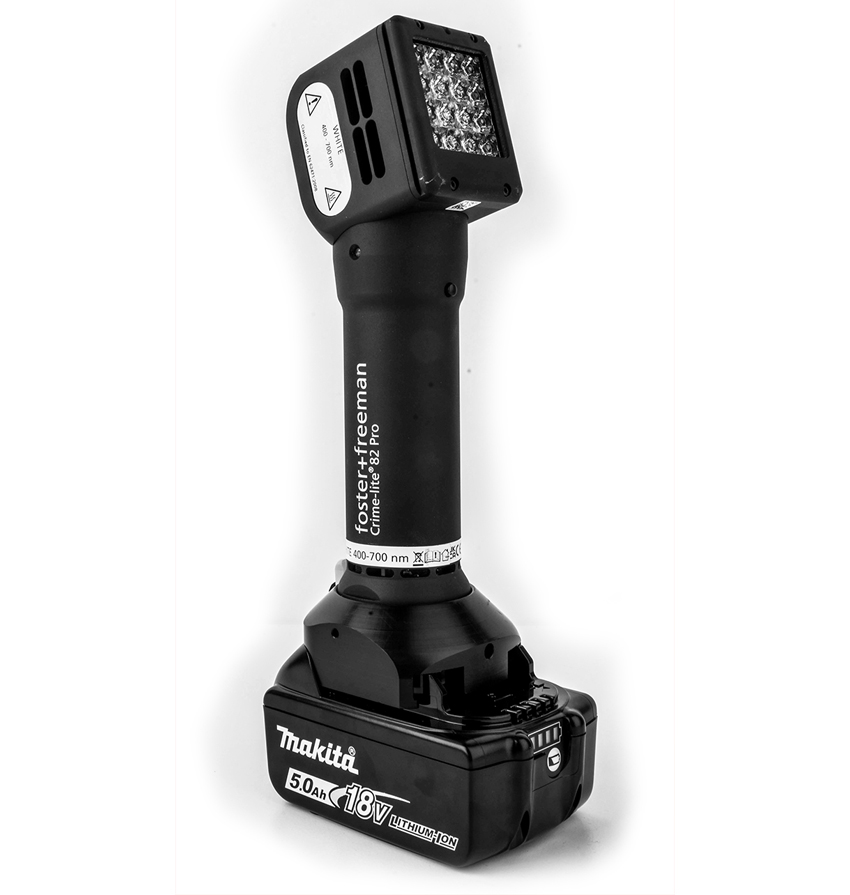

Crime-lite® 82S

Powerful alternate light sources for crime scene and laboratory

Where serious crime demands intensive crime scene investigation, the Crime-lite 82S range offers levels of illumination and ease of use that will almost certainly increase the quantity and value of evidence detected.

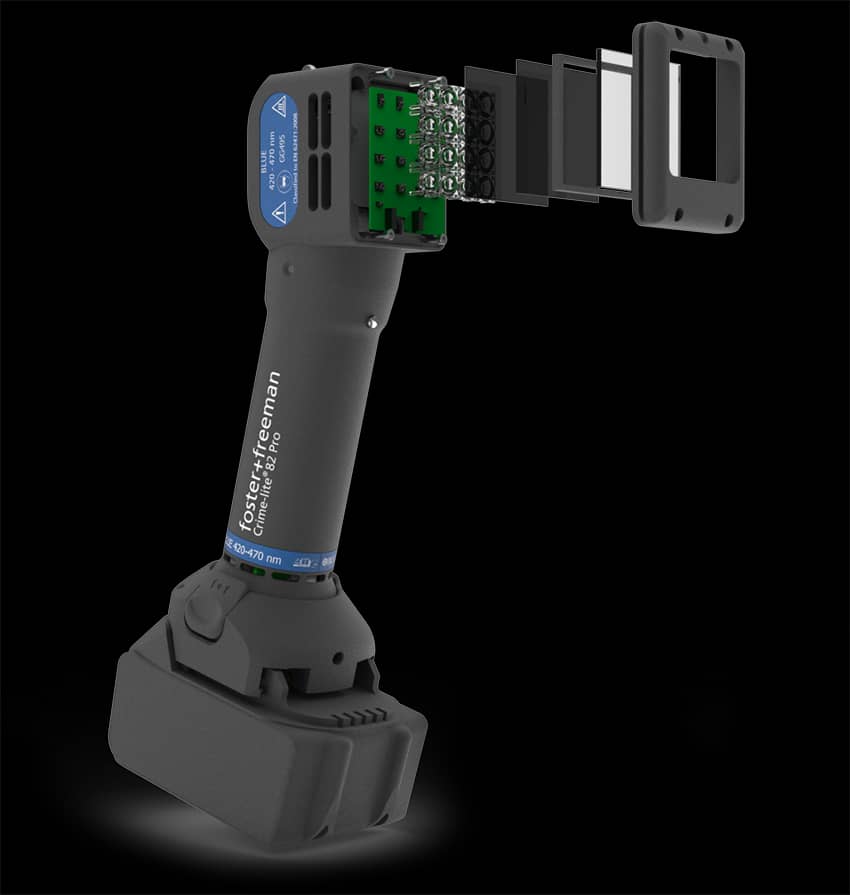

Each Crime-lite 82S features 16 LEDs hand-picked for brightness and wavelength accuracy, ensuring consistent performance and effectiveness. Viewing goggles and camera filters supplied with the 82S range feature anti-glare coatings unique to Foster + Freeman. These improve effectiveness by suppressing auto-fluorescence from the basic filters.

The range includes UV, Violet, Blue, Blue/Green, Green, Orange, Red and Infrared narrow bandwidth illumination for detecting blood, body fluids, drugs, and fibers as well as for examining chemically treated fingerprints.

Crime-lite 82S kits are supplied with a complete range of accessories including anti-glare viewing goggles and camera lens filters designed to provide maximum optical performance when used alongside high power light sources.

  • 16 x high-efficiency LEDs
  • Up to 19W LED output power
  • High short range intensity
  • Runs on AC mains or rechargeable battery
  • Battery run time up to 750 minutes
  • Constant light output throughout the battery charge
  • Low battery indicator
  • Adjustable intensity on white light model (10%,30%,50%,100%)
  • Ergonomic design
  • Anti-glare Viewing Goggles and Camera Filters
  • Crime-lite 82S Infrared Accessories
  • Evidence Viewing Box
  • Laboratory Arm
  • Laboratory Cart
  • Crime Scene Accessories
  • Power Supply Components
  • White 400-700nm
  • UV 350-380nm
  • Violet 395-425nm
  • Blue 420nm-470nm
  • Blue/Green 445-510nm
  • Green 480-560nm
  • Orange 570-610nm
  • Red 600-660nm
  • Infrared 800-900nm
Request Quote
Brochure PDF

Applications

With a full spectrum of available wavelengths, the Crime-lite 82S is a versatile tool for crime scene and laboratory alike. The Crime-lite 82S is a powerful device, whether you are looking for physical evidence such as blood or bone, trace evidence such as hair or gunshot residues, shoeprints, debris or treated fingermarks.

Fibre Detection

Baseball Cap under white light.Baseball cap under crime-lite.

The wide range of available wavelengths makes the Crime-lite 82S ideal for the detection of fibres and hair at the crime scene, which would otherwise invisible to the naked eye.

Detection of Body Fluids

Semen covered sock to the naked eye.Semen covered sock under a bandpass filter.

The ability of the Crime-lite 82S to detect a wide range of body fluids on coloured, textured, and patterned backgrounds has made it a regular sight both at crime scenes and in the laboratory.

Accessories

Crime-lite anti-glare viewing goggles and camera filters are essential for the examination and photography of fluorescent evidence and are supplied as standard with all Crime-lite 82S cased sets.

Each anti-glare filter is manufactured from Schott glass with an additional coating to suppress auto-fluorescent emissions from the Schott glass itself, thus ensuring maximum optical performance when using high power light sources.

As standard foster+freeman camera lens filters are supplied with 62mm fittings, other sizes are available on request.

Brochure PDF

5MP IR sensitive camera
for the visualization and digital image capture of evidence

  • Attaches to the Crime-lite 82S
  • Hi-speed USB 2.0 interface
  • Includes UV, Vis & IR filters
  • Includes image capture software

Articulated Arm
for the hands-free operation of the Crime-lite 82S IR

  • Bench or wall mounted
  • Reach 132cm
  • Internal power and USB cables

Tablet PC Mount
adjustable mount that clamps tablet PC to Articulated Arm

Designed for use with the Crime-lite 82S, the Crime-lite Viewing Box provides a simple solution to a long-standing problem.

When using a high-intensity light source for the examination of fluorescent evidence including latent fingerprints it is often the case that ambient light reduces the visibility of the print. The Crime-lite Viewing Box solves this problem by shielding the fingerprint from all ambient light ensuring optimum visibility.

The Crime-lite Viewing box has pre-cut slots to accommodate Foster + Freeman anti-glare viewing goggles or an SLR camera. Accessories include a camera stand and lens bellows.

Available for use with all Foster + Freeman Crime-lites, this heavy-duty low-profile articulated arm allows for easy hands-free operation of high-intensity light sources.

Internal power cables can be used to connect the Crime-lite (and optional camera) to an AC mains power outlet without trailing wires.

Crime-lite’s are attached via an adjustable clamp.

Available for use with all Foster + Freeman Crime-lites but originally designed for use with Crime-lite 82S IR and Crime-lite ML2 systems (light source, camera, and tablet PC), this robust wheeled cart is ideal for use in forensic laboratories.

The cart is mounted on lockable castors and can be manoeuvred around exhibits. A two-point fixing plate allows for the easy attachment of a Crime-lite articulated arm.

An optional uninterruptible power supply can be used to power equipment with no trailing wires. When not in use the trolley can be connected to an AC mains power outlet to be recharged.

CSI Case
available in a variety of sizes for all Crime-lite forensic light sources.

CSI Case Trolley
for easy transportation of Crime-lite CSI cases.

Wrist Lanyard
attaches to handheld Crime-lites to prevent the risk of being dropped.

Tripod
available for all Crime-lite forensic light sources.

Spare or replacement batteries and battery chargers are available for all handheld Crime-lites. The following components are available for the Crime-lite 82S.

Battery

  • ORDER CODE: QCL/82S/008B
  • TYPE: 18V Li Ion rechargeable

Charger

  • ORDER CODE: QCL/82S/009
  • CHARGE TIME: 22 minutes

Vehicle Batter Charger

  • ORDER CODE: QCL/82S/010

Battery pouch with strap

  • QCL/82S/012
