Crime-lite® ML2

Bench top magnifier with multi-wavelength illumination, including infrared illumination module.

The Crime-lite ML2 forensic light source combines the versatility of multi-wavelength, high intensity LED illumination with wide area bi-ocular magnification. An ideal system for the examination and ‘marking up’ of large items of evidence in the laboratory.

The Crime-lite ML2 features 8 high intensity white LEDs for general search and a choice of up to 4 additional narrowband LEDs including: UV, Violet, Blue, Blue/Green, Green, Orange & Infrared – wavelengths that are effective in detecting body fluids, semen, bone and tooth fragments, fibres, drugs, explosives, accelerants and chemically treated evidence.

Optional accessories for the Crime-lite ML2 system include an IR sensitive camera and tablet PC with image capture software for the visualization and recording of evidence undergoing infrared examination.

  • 8 x high-efficiency White LEDs
  • Your choice of additional narrowband LED modules
  • large 3.5 dioptre magnifying lens
  • Optimised for the laboratory examination of large items
  • Heavy duty bench or wall mounted arm
  • Three-axis adjustable head mount
  • Air filter to maintain a clean environment
  • 100-240V AC power input
  • Power saving mode
  • Optional Vis/IR Camera Module
  • Bandpass Viewing Filters
  • Crime-lite ML2 Infrared Accessories
  • Laboratory Cart
  • White 400-700nm
  • UV 350-380nm
  • Violet 395-425nm
  • Blue 420nm-470nm
  • Blue/Green 445-510nm
  • Green 480-560nm
  • Orange 570-610nm
  • Red 600-660nm
  • Infrared 800-900nm
Request Quote
Brochure PDF

Applications

Increased Speed
and Efficiency

The Crime-lite ML2 provides forensic examiners with a fast and efficient method of screening articles for the presence of fingerprints, trace evidence or other biological material. Laboratory productivity is greatly increased by quickly ‘marking up’ areas of interest and eliminating articles devoid of evidence.

Use the tables below to determine the wavelengths required for your chosen applications:

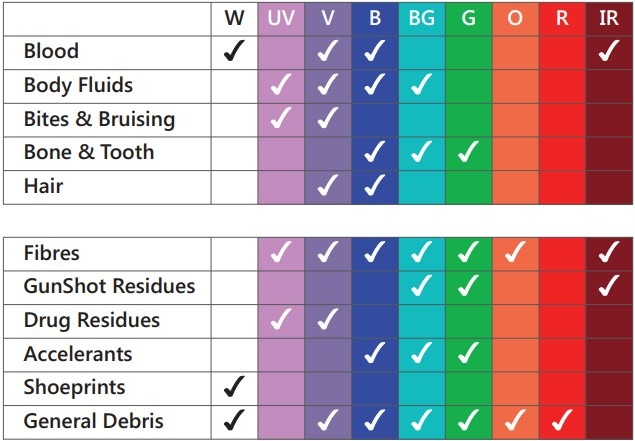

ml2 apps bio trace
ml2 apps bio trace

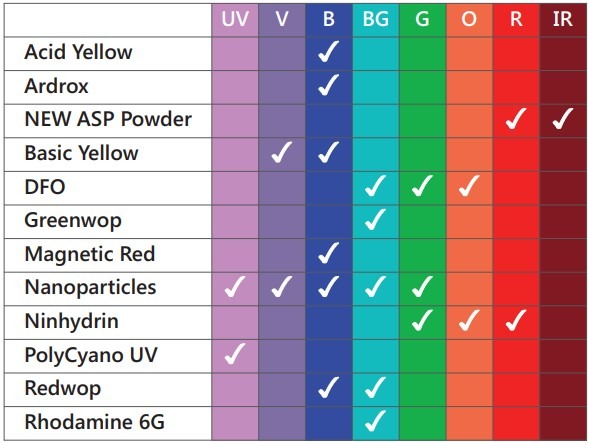

ml2 apps fps
ml2 apps fps

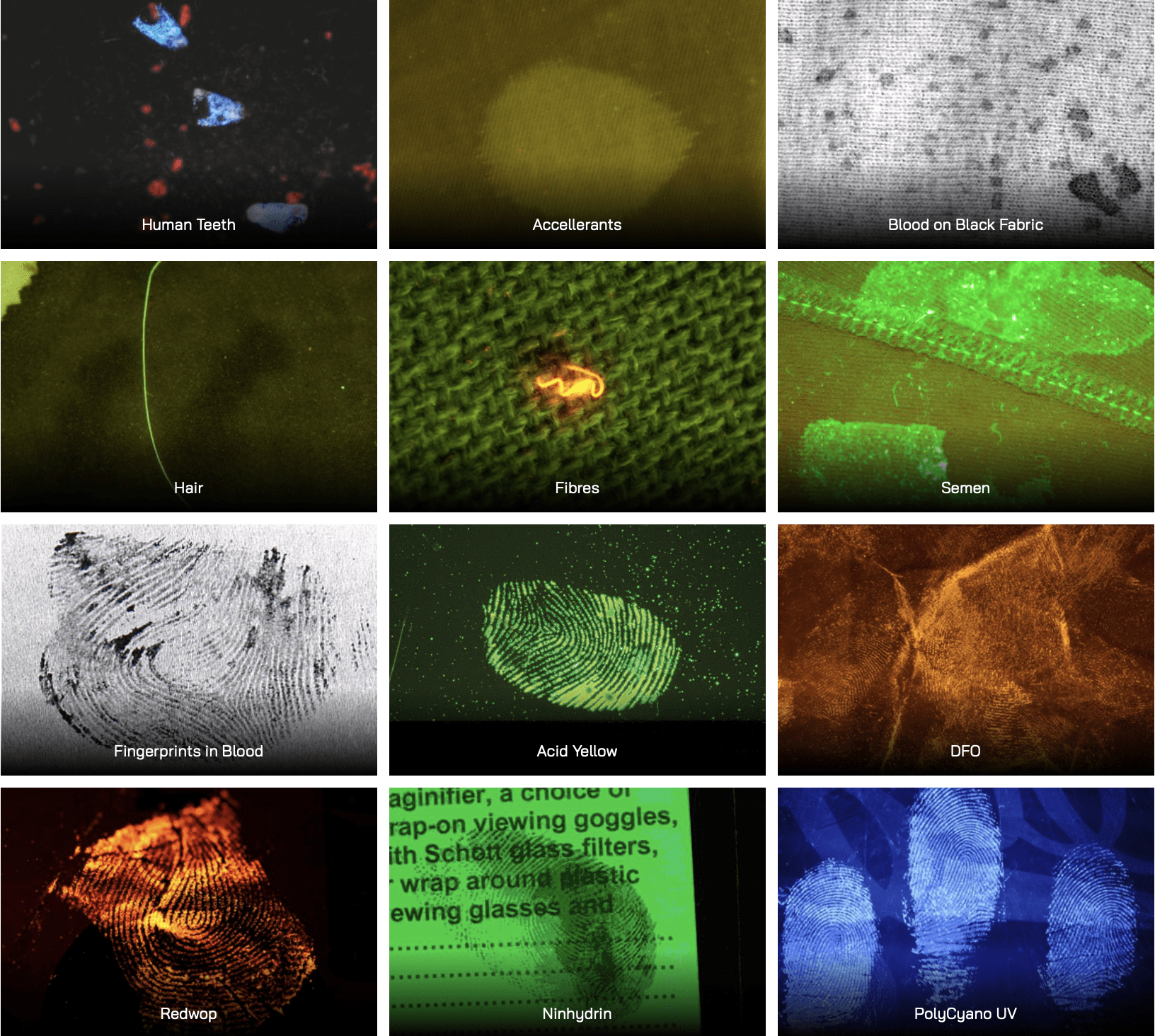

  • tooth2
    Human Teeth
  • accellerants
    Accellerants
  • blood2
    Blood on Black Fabric
  • hair2
    Hair
  • fibreB
    Fibres
  • semen2
    Semen
  • Blood with 415 violet light no filter
    Fingerprints in Blood
  • acid yellow
    Acid Yellow
  • DFO with antiglare filter
    DFO
  • redwop can 2
    Redwop
  • Ninhydrin Colour
    Ninhydrin
  • PolyCyano UV - A one-stage chemical staining process that provides a fast effective alternative to cyanoacrylate.
    PolyCyano UV

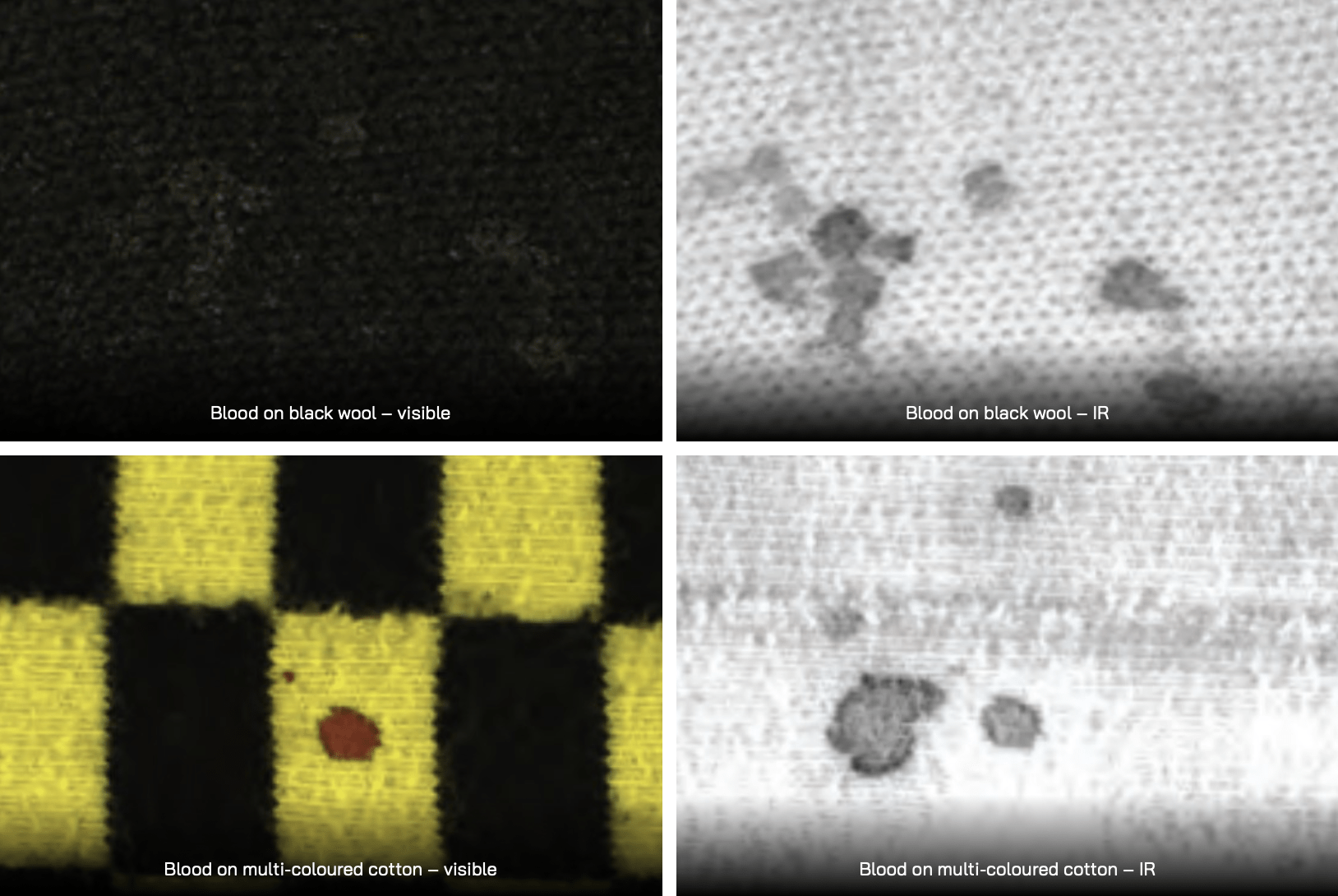

  • blood blackwool v
    Blood on black wool – visible
  • blood blackwool ir
    Blood on black wool – IR
  • blood checkered v
    Blood on multi-coloured cotton – visible
  • blood checkered ir
    Blood on multi-coloured cotton – IR

Searching Beyond
the Visible

The addition of a new Infrared LED module and UV-Vis-IR camera has further increased the functionality of the Crime-lite ML2 by allowing investigators to conduct examinations beyond the limits of the visible spectrum. Previously hard to detect evidence, such as blood or GSR on dark or densely patterned fabrics, becomes clearly visible under IR illumination when viewed in the infrared waveband.

Accessories

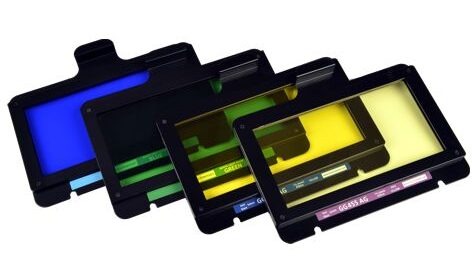

Bandpass Viewing Filters

In addition to the standard filters supplied with the Crime-lite ML2, a selection of Bandpass Viewing Filters, tailored for the examination of specific evidence types, are also available.

  • 415nm for the visualization of blood spatter
  • 530nm for the visualization of body fluids
  • 550nm for the visualization of body fluids

Each Bandpass Viewing Filter is manufactured from Schott glass with an additional coating to suppress auto-fluorescent emissions from the Schott glass itself, thus ensuring maximum optical performance when using high power light sources.

Evidence undergoing infrared examination using the Crime-lite ML2 IR module is visualized using an IR sensitive camera attachment with live video images being displayed on a PC monitor.

5MP IR sensitive camera
for the visualization and digital image capture of evidence

  • Attaches to the Crime-lite 82S
  • Hi-speed USB 2.0 interface
  • Includes UV, Vis & IR filters
  • Includes image capture software

Tablet PC Mount
adjustable mount that clamps tablet PC to Articulated Arm

Available for use with all foster+freeman Crime-lites, this robust wheeled cart is ideal for use in forensic laboratories.

The 70x60x70cm unit is mounted on lockable castors and can be manoeuvred around exhibits. A two-point fixing plate allows for the easy attachment of a Crime-lite articulated arm.

An optional uninterruptible power supply can be used to power equipment with no trailing wires. When not in use the trolley can be connected to an AC mains power outlet to be recharged.
