Foster + Freeman Cylindrical Surface Unwrapper
Foster + Freeman Cylindrical Surface Unwrapper (CSU) allows forensic examiners to effortlessly take flat photos of cylindracal pieces of evidence.

CSU

Cylindrical Surface Un-wrapper for DCS and Crime-lite Imager

‘Un-wrap’ 2D images of fingerprints on 3D objects including bullets, pens, tools & syringes etc.

An innovative new accessory for use with the Crime-lite Imager and DCS fingerprint imaging systems, the Cylindrical Surface Un-wrapper (CSU) enables the forensic examiner to extract 2D images of fingerprints from a 3D cylindrical surface.

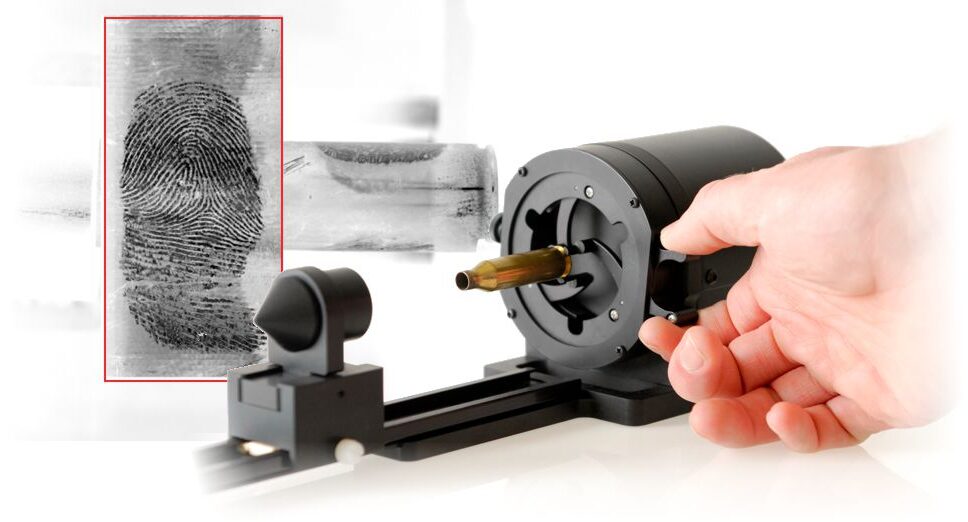

Designed to capture high-quality images of fingerprints from the cylindrical surfaces of bullet casings, pens, and hand tools etc., the CSU uniformly rotates items of evidence while the attached Crime-lite Imager or DCS workstation captures, stitches and blends a series of images together to create a single 2D image of the fingermark.

Using the CSU, items of evidence that had previously presented a significant challenge to forensic photographers can now be quickly and easily ‘unwrapped’ for examination and enhancement.

Max Dimensions

  • 85mm x 330mm x 110mm (W x L x H)

Evidence Clamping jaws

  • Internal Clamping: Ø 5mm to Ø 55mm
  • External Clamping: up to Ø 45mm

 Other Features

  • Reversible alignment guide
  • 12V power input
  • USB interface
Request Quote
Brochure PDF

Using the CSU

to ‘un-wrap’ fingermarks

It is common for fingerprints to be found on curved or cylindrical surfaces. These surfaces may pose a significant challenge to the fingerprint photographer. The Cylindrical Surface Un-wrapper (CSU) is a plug-in accessory for DCS and Crime-lite Imager systems that enables the examiner to digitally un-wrap fingerprints.

In this short video demonstration, an item of superglue fumed evidence is loaded onto the CSU with fingerprints being un-wrapped and observed using the DCS 5 fingerprint imaging workstation.

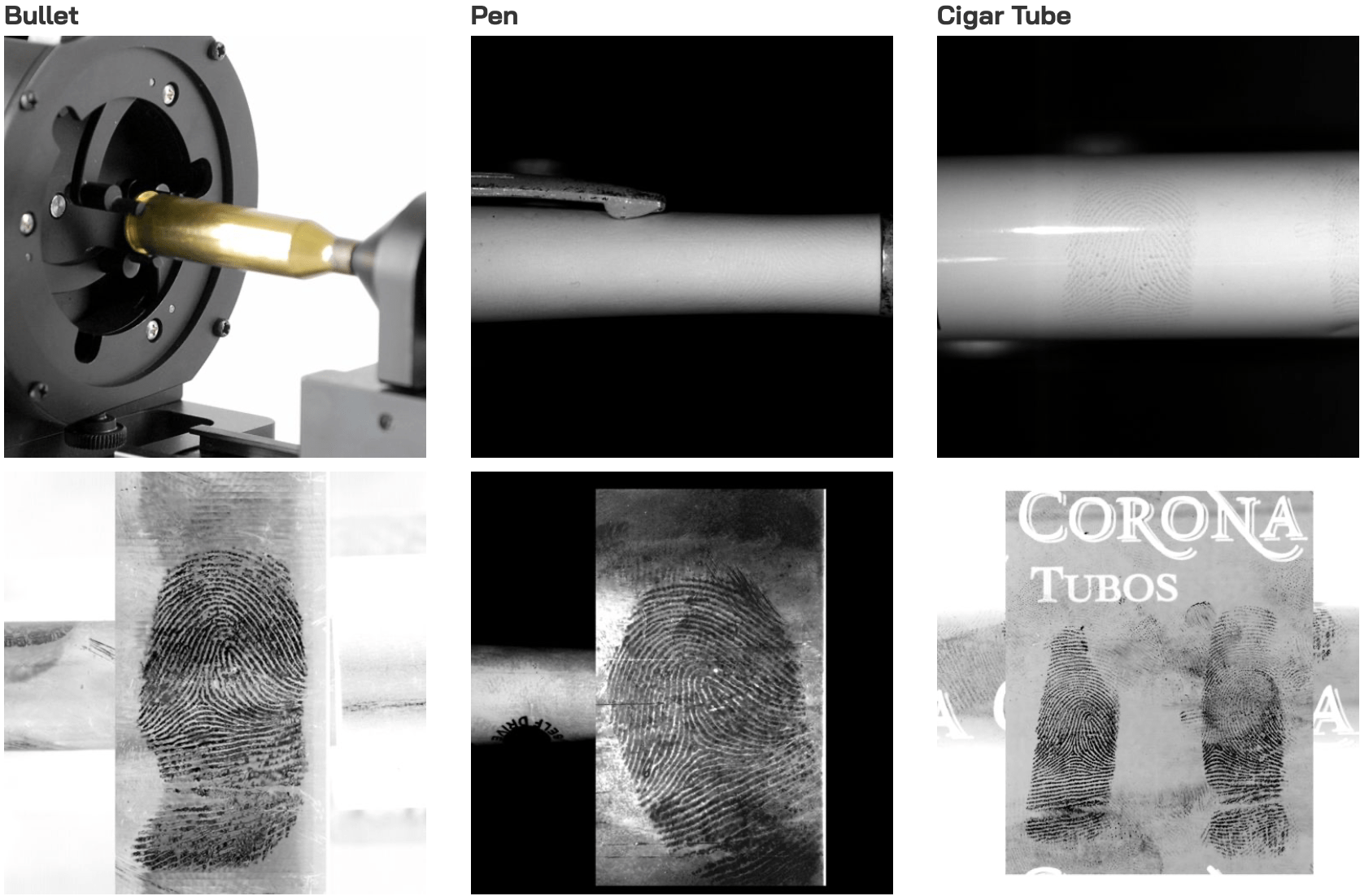

Bullet

  • Bullet being loaded in the CSU.
    Bullet being loaded in the CSU.
  • Fingermark on bullet "unwrapped" and captured using the Foster+Freeman CSU.
    Fingermark on bullet “unwrapped” and captured using the Foster+Freeman CSU.

Pen

  • Image of the pen captured without the help of the CSU.
    Image of the pen captured without the help of the CSU.
  • Fingermark on pen "unwrapped" and captured using the Foster+Freeman CSU.
    Fingermark on pen “unwrapped” and captured using the Foster+Freeman CSU.

Cigar Tube

Applications

‘un-wrapping’ fingermarks

The foster+freeman CSU is a quick and easy solution to the problem of imaging fingermarks on narrow cylindrical items including bullets, pens, batteries, glass vials, bottles, syringes, hand tools and other similarly shaped objects.
