STREAMLINED MULTISPECTRAL IMAGING
Rapid Forensic Screening and Imaging to Meet the Demands of Busy Forensic Laboratories
Crime-lite® ML PRO 2
A simple and intuitive imaging solution, the Crime-lite ML PRO 2 is a semi-automated evidence screening tool built to meet the demands of busy forensic laboratories tasked with processing a broad variety of evidence types.
STREAMLINED MULTISPECTRAL IMAGING
Rapid Forensic Screening and Imaging to Meet the Demands of Busy Forensic Laboratories
Crime-lite® ML PRO 2
A simple and intuitive imaging solution, the Crime-lite ML PRO 2 is a semi-automated evidence screening tool built to meet the demands of busy forensic laboratories tasked with processing a broad variety of evidence types.
STREAMLINED MULTISPECTRAL IMAGING
Rapid Forensic Screening and Imaging to Meet the Demands of Busy Forensic Laboratories
Crime-lite® ML PRO 2
A simple and intuitive imaging solution, the Crime-lite ML PRO 2 is a semi-automated evidence screening tool built to meet the demands of busy forensic laboratories tasked with processing a broad variety of evidence types.
A Dependable Workhorse for the Detection and Examination of Forensic Evidence Traces
Fundamentally designed around biological evidence detection, the high specifications of the ML PRO 2 are ideal for the examination of all common forensic traces:
DNA &
BODY FLUIDS
HAIRS &
FIBRES

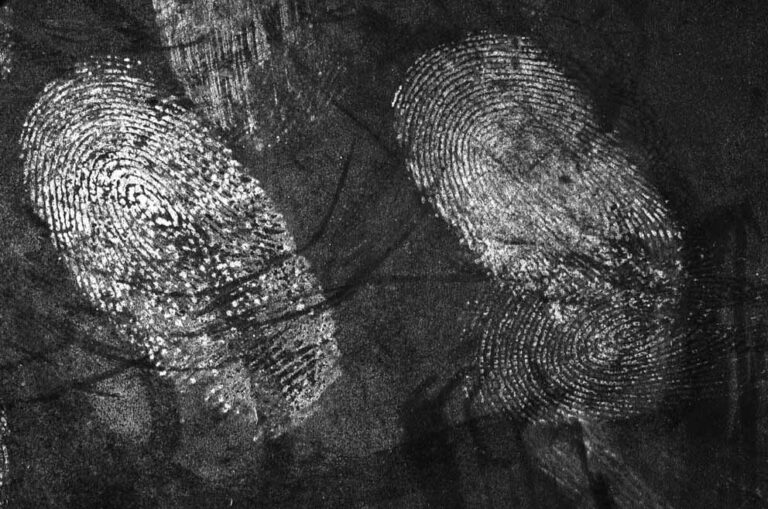

FINGERPRINTS &
IMPRESSIONS
DRUGS &
NARCOTICS
GUN SHOT
RESIDUES
TOOL
MARKS

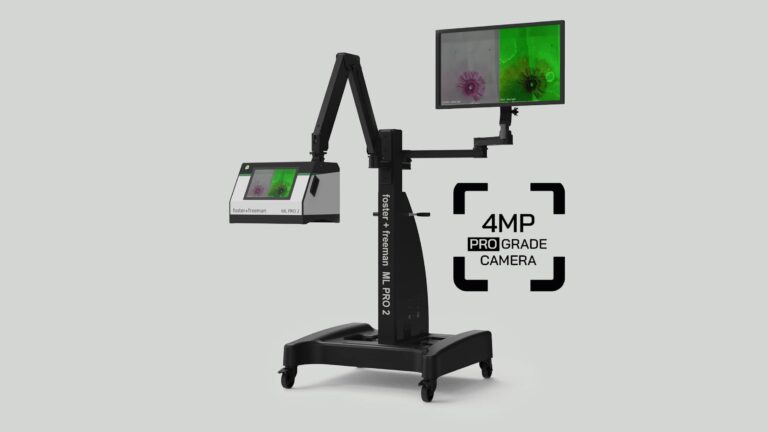

Capture High Resolution Images
Engineered around a high resolution full-spectrum camera with intelligent optics, the ML PRO 2 imaging system has been fine tuned for the photography of evidence. Raise the system to capture entirety images; zoom in to detect and capture fine detail.
A Seamless User Experience
Updated for 2024, the improved ML PRO 2 workflow enables rapid detection, capture and mark-up of evidence allowing users to quickly generate and output comprehensive case reports.

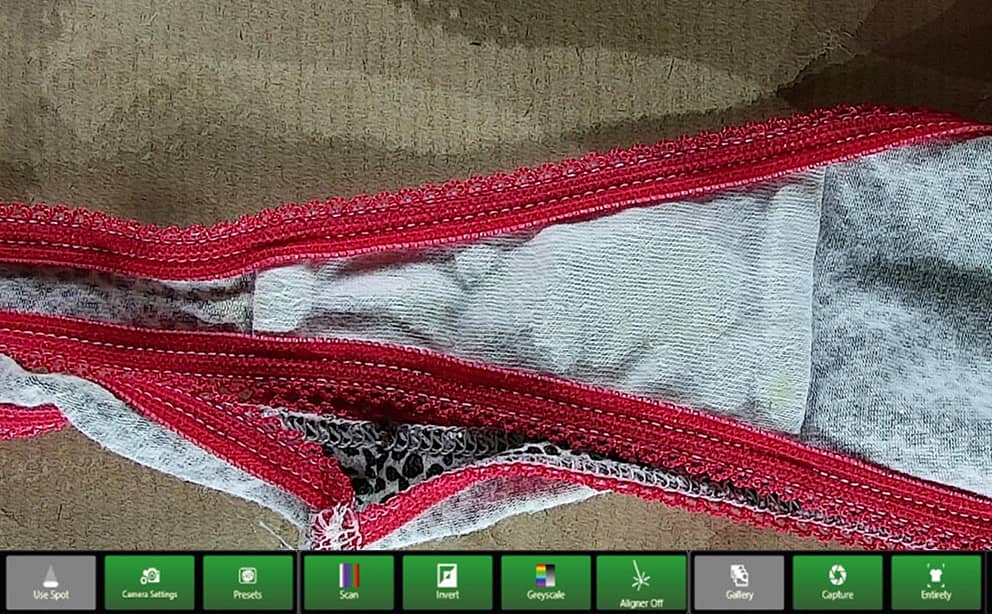

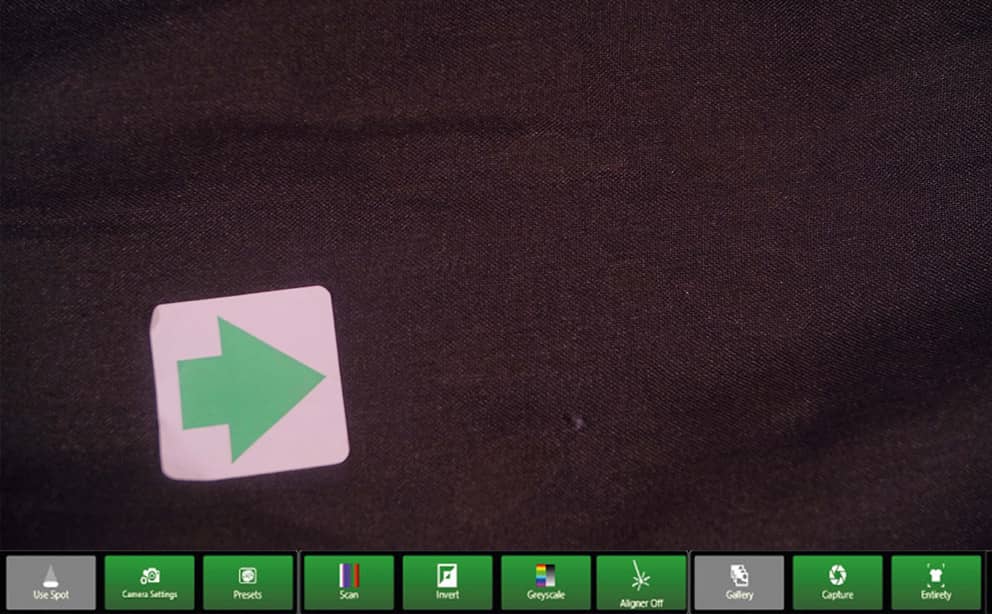

SEARCH & DETECT
WITH STREAMLINED EVIDENCE CAPTURE
– PRE-SET LIGHTING/FILTER COMBINATIONS
– CREATE CUSTOM CONFIGURATIONS
– LARGE FIELD OF VISION
Examine objects under UV, Visible, and IR light sources to reveal hidden details, utilising pre-configured lighting/filter combinations for specific evidence types, or craft custom configurations for ultimate flexibility.

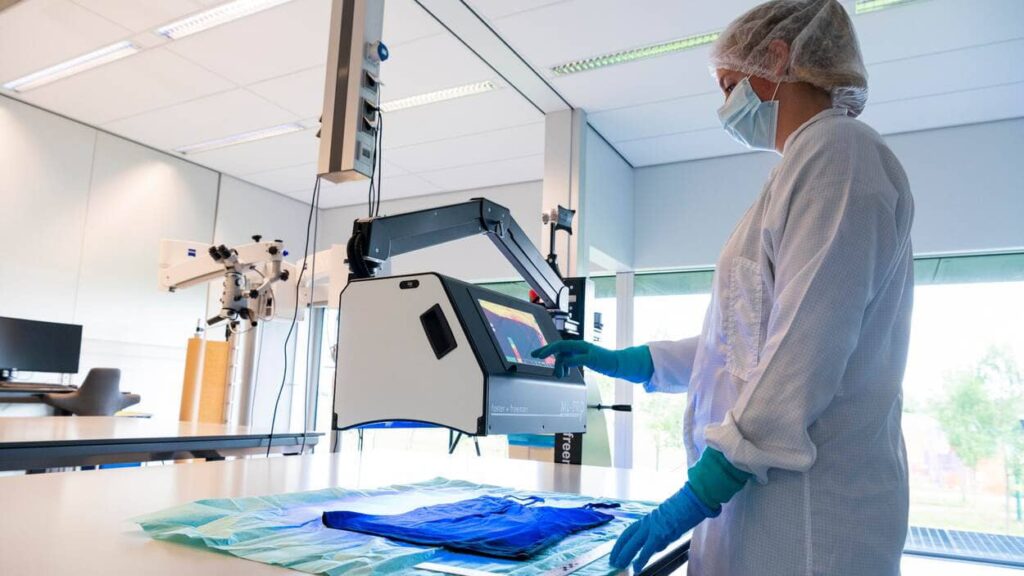

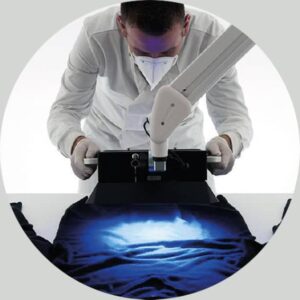

The ML PRO 2 manoeuvres effortlessly over evidence, enabling both one-click automated searches and manual control over light sources and filters.
– 4MP VIS/IR CAMERA
– OPTIMISED FOR FORENSIC ANALYSIS
– 30X OPTICAL ZOOM

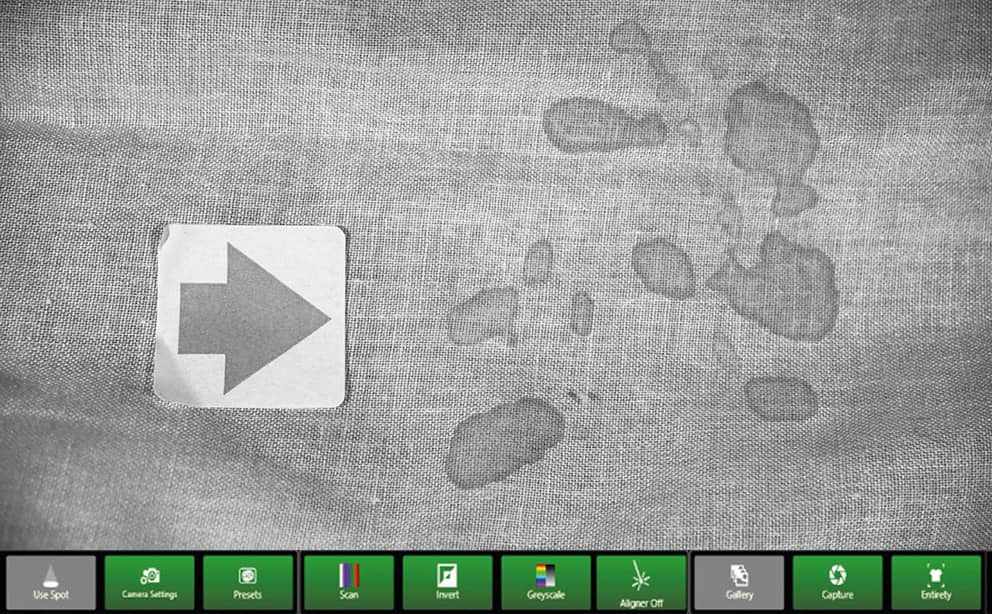

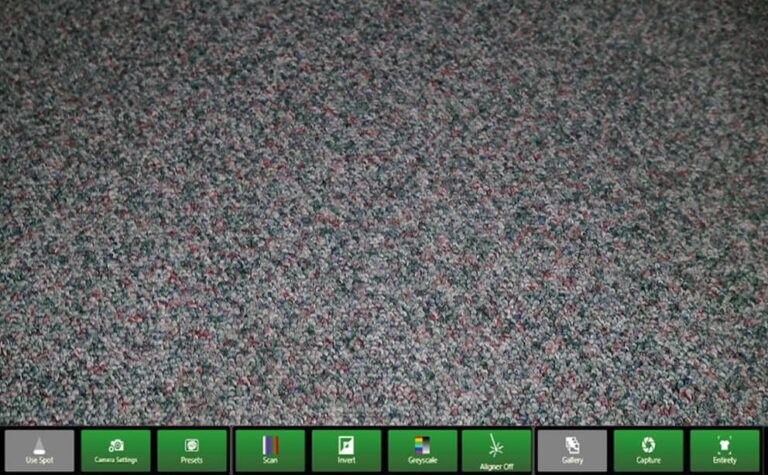

CAPTURE & ENHANCE
USING SCIENTIFIC-GRADE CAMERA
Capture high-quality images with the scientific-grade 4MP Vis/IR camera optimised for forensic analysis.

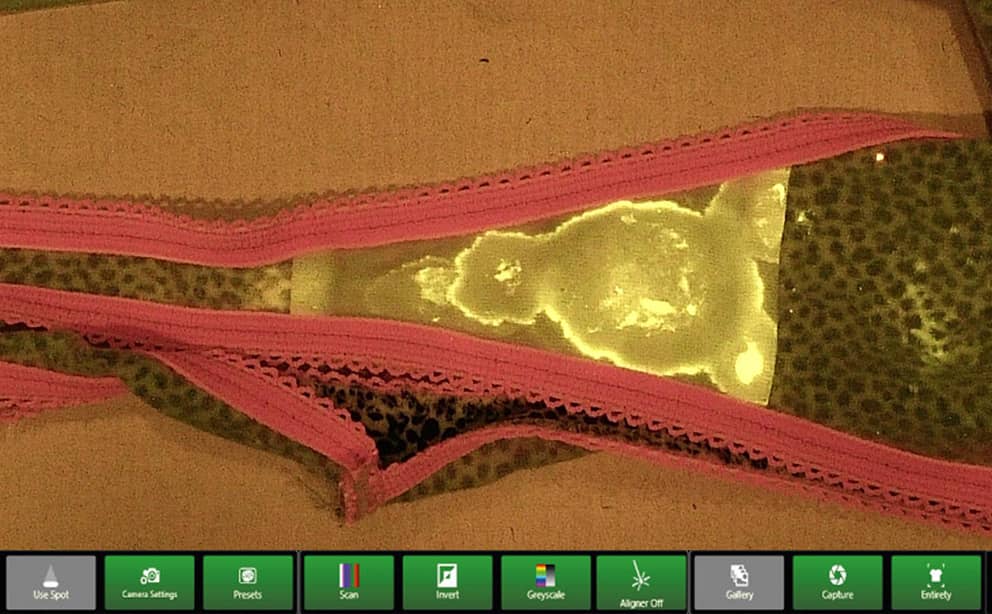

Intelligent optics maximise the visibility of even faint traces of fluorescing evidence, whilst powerful zoom and essential image enhancements like exposure control and invert reveal hidden details, ensuring no evidence escapes detection.

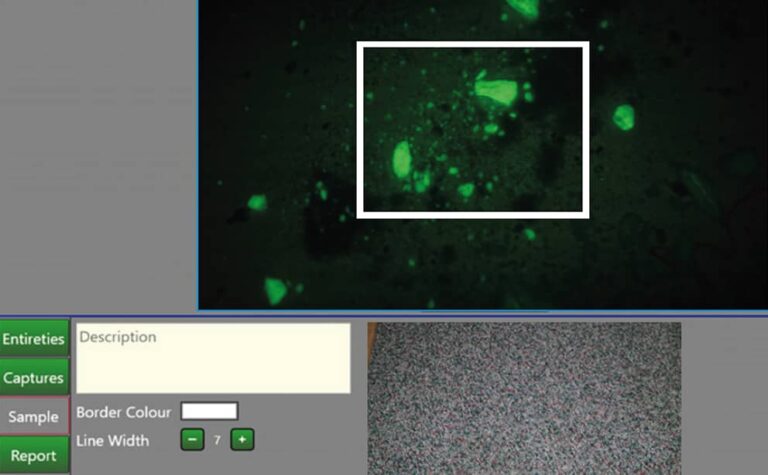

ANNOTATE & REPORT
WITH INTEGRAL REPORTING TOOL
– QUICKLY CREATE COURT-READY REPORTS
– ADD CASE NOTES AND ANNOTATIONS
– EXPORT TO COMMON FORMATS
Identify areas of interest, mark-up and annotate images using the Crime-lite ML PRO 2 reporting tool.
Optimise the entire evidence workflow by quickly and easily producing court-ready reports, complete with chain-of-custody information, contextual images, side-by-side comparisons, and the option to include software-generated line drawings.
Fully Integrated Technology for a Complete Forensic Imaging Solution
Detect More Evidence with Multispectral UV/Vis/IR Illumination
The Crime-lite ML PRO 2 allows examiners to exploit the full forensic spectrum to detect evidence with high-intensity LED illumination at all wavelengths from Ultraviolet to Infrared.
Ensure High-Quality Results with Motorised Camera Filters
Automatic/manual selection of camera filters with over 3,300 wavelength/filter combinations. Pre-set examination and evidence specific bandpass filters simply searches and improve results.
Capture Every Detail with Full-Resolution Image Capture
A precise, scientific-grade 4MP camera system with 30x optical magnification provides accurate close-up and wide area photography, supported by a focus-assist rangefinder/alignment LED.
Fully Integrated Technology for a Complete Forensic Imaging Solution
Detect More Evidence with Multispectral UV/Vis/IR Illumination
The Crime-lite ML PRO 2 allows examiners to exploit the full forensic spectrum to detect evidence with high-intensity LED illumination at all wavelengths from Ultraviolet to Infrared.
Ensure High-Quality Results with Motorised Camera Filters
Automatic/manual selection of camera filters with over 3,300 wavelength/filter combinations. Pre-set examination and evidence specific bandpass filters simply searches and improve results.
Capture Every Detail with Full-Resolution Image Capture
A precise, scientific-grade 4MP camera system with 30x optical magnification provides accurate close-up and wide area photography, supported by a focus-assist rangefinder/alignment LED.
Experience the capabilities of the ML PRO 2 first-hand
Our expert staff deliver product demonstrations across the globe, providing the opportunity to get hands-on with our products and experience their capabilities for yourself. Get in touch with our team today to request a demonstration or further information.

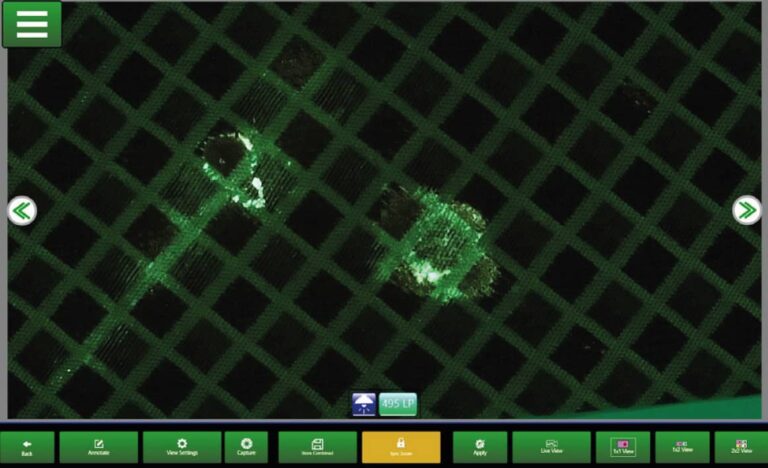

An Intuitive Software Interface for a Seamless Evidence Workflow
The Crime-Lite ML PRO 2 boasts a redesigned interface specifically crafted for forensic examiners in ISO 17025 / 17020 compliant labs.
SEROLOGY
TRACE EVIDENCE
POST MORTEM
Improve the efficiency of examinations using pre-set examinations based on common evidence types. Need something more specific? The ML PRO 2 allows users to configure their own custom lighting/filter combinations, ideal for routine tasks or examinations.
Upgrade to ML PRO 2 and Revolutionise your Workflow
While Crime-Lite ML PRO devices remain trusted workhorses in forensic laboratories worldwide, the fully-digital Crime-Lite ML PRO 2 unlocks new levels of capability and efficiency.
Uncover the Invisible:
Detect and examine traces of evidence outside the range human of human vision.
Maximise Evidence Detection:
Explore over 3300 illumination/filter combinations to visualise a broader spectrum of evidence types.
Capture Every Detail:
Document examinations with a scientific-grade camera, ensuring no crucial evidence escapes capture.
Streamline Your Workflow:
From initial screening to comprehensive reports, the ML PRO 2 handles every stage of your workflow.
Crime-lite ML PRO 2:
A Product of Evolution
Since beginning research and development for the original Crime-lite ML, we have accumulated 2 decades of experience in the design and production of forensic laboratory light sources. With each product in the ML line representing contemporary best-in-class technology and offering further refinements in performance, efficiency, and ease-of-use. The Crime-lite ML PRO 2 continues this evolution, building on experience to deliver the ultimate forensic laboratory light source.

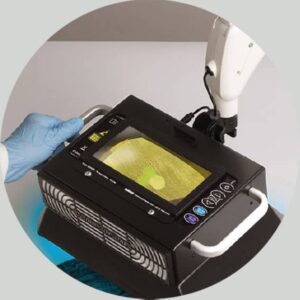

CRIME-LITE ML
Launched 2006
No integral imaging
2 Wavelengths
Slot-in Filters
1.8x Biocular Lens

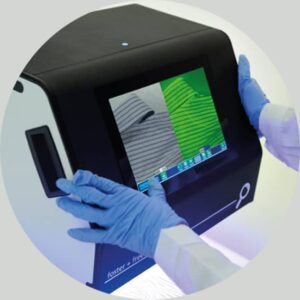

CRIME-LITE ML2
Launched 2011
Bolt-on Vis/IR Camera
8 Wavelengths
Slot-in Filters
1.8x Biocular Lens

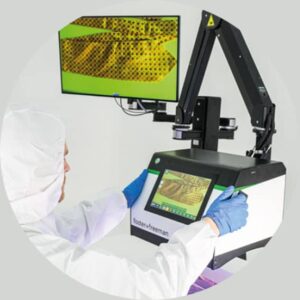

CRIME-LITE ML PRO
Launched 2020
2MP Vis/IR Camera
15 Illumination Modes
12 Motorised Filters
Up to 30x Optical Magnification
CRIME-LITE ML PRO 2
Launched 2024
4MP Vis/IR Camera
15 Illumination Modes
14 Motorised Filters
Up to 30x Optical Magnification
Camera/Optics
4MP Full-spectrum Camera.
350-1050nm Spectral Range.
30x Optical Zoom
Illumination
Multispectral Flood Illumination (LED) – 365, 405, 445, 475, 525, 640nm.
Multispectral Spot Illumination (LED) – 365, 405, 445, 475, 525, 640nm.
Oblique/Side (LED) – Visible, UV 385nm, IR 850nm.
Motorised Filters
Visible and IR longpass and bandpass filters with thresholds at:
– Bandpass: 360nm, 415nm, 530nm, 550nm.
– Longpass: 420nm, 455nm, 495nm, 550nm.
Linear Polariser and Broadband visible pass filter (400-700nm).
Safety Compliance
CE and RoHS compliant
EN61010-1 compliant
EN62471 compliant
‘App’ style user interface
Pre-set examinations
One-click Full AutoScan
Image review and comparison
Editable image annotation facilities
On-screen scale and measurements
Report creation (PDF/RTF)
Available in multiple languages
Camera/Optics
4MP Full-spectrum Camera.
350-1050nm Spectral Range.
30x Optical Zoom
Illumination
Multispectral Flood Illumination (LED) – 365, 405, 445, 475, 525, 640nm.
Multispectral Spot Illumination (LED) – 365, 405, 445, 475, 525, 640nm.
Oblique/Side (LED) – Visible, UV 385nm, IR 850nm.
Motorised Filters
Visible and IR longpass and bandpass filters with thresholds at:
– Bandpass: 360nm, 415nm, 530nm, 550nm.
– Longpass: 420nm, 455nm, 495nm, 550nm.
Linear Polariser and Broadband visible pass filter (400-700nm).
Safety Compliance
CE and RoHS compliant
EN61010-1 compliant
EN62471 compliant
‘App’ style user interface
Pre-set examinations
One-click Full AutoScan
Image review and comparison
Editable image annotation facilities
On-screen scale and measurements
Report creation (PDF/RTF)
Available in multiple languages
Detect more evidence, more efficiently
With system options for all requirements, get in touch today to find our more about how Crime-lite ML PRO 2 can revolutionise your workflow and improve your results.
SYSTEM ONLY
TROLLEY SYSTEM
WALL MOUNT
