COMPACT AND COMPREHENSIVE DOCUMENT AUTHENTICATION
An Evolution in Versatile Document Examination

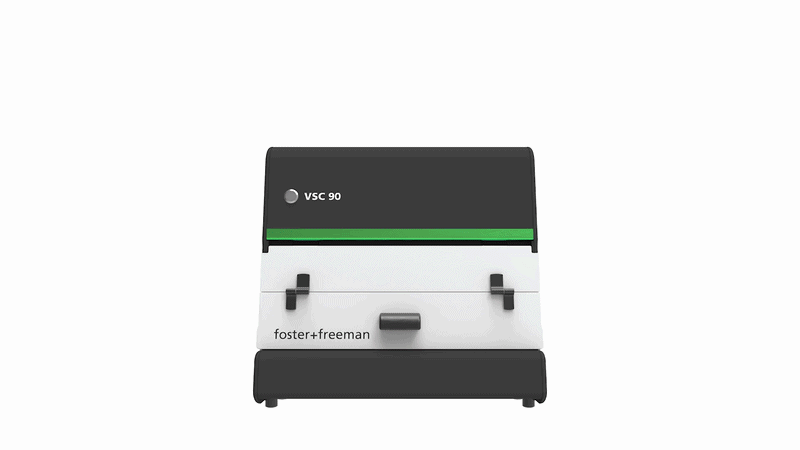

VSC®90
Available as a standalone field-ready system for mobile deployment, or a lab-ready device, the VSC90 delivers forensic-grade multispectral examination and eChip analysis wherever needed, from fixed laboratories and checkpoints to remote field operations.
COMPACT AND COMPREHENSIVE DOCUMENT AUTHENTICATION
An Evolution in Versatile Document Examination
VSC®90
Available as a standalone field-ready system for mobile deployment, or a lab-ready device, the VSC90 delivers forensic-grade multispectral examination and eChip analysis wherever needed, from fixed laboratories and checkpoints to remote field operations.
Flexible Next-generation Software Provides Rapid eChip Authentication and Forensic-Level Analysis
Improved eChip analysis software extracts and analyses identity data stored on a documents eChip to provide the highest level of authenticity assurance for e-passports, ID cards, and other critical documents. Seamlessly switch between two powerful new software modes for rapid authentication or detailed forensic analysis.
Cross-Examine Physical & Digital Features for True Confidence in Document Authentication
The VSC90 delivers a complete examination solution by combining forensic-level eChip
analysis, comprehensive all-LED multispectral illumination, and seamless reference
database integration. This multi-layered cross-checking empowers examiners to
authenticate documents with the highest confidence.
Why Choose VSC90?
ACCESS TO VSC TECHNOLOGY
VSC90 provides the full set of market-leading VSC features in a compact device, for detailed examination of all documents.
EXAMINE IN ANY LOCATION
A self-contained system with integrated PC and monitor options, the VSC90 is ideal for mobile deployment.
VERSITILE AND FLEXIBILE
Effective for both front-line rapid screening and detailed second-line inspections, VSC90 offers a wide range of tools.
ENHANCED THROUGHPUT
Utilise customisable pre-sets examinations to speed up high volume document checks with consistent and accurate results.
ACCELERATES EXAMINATIONS

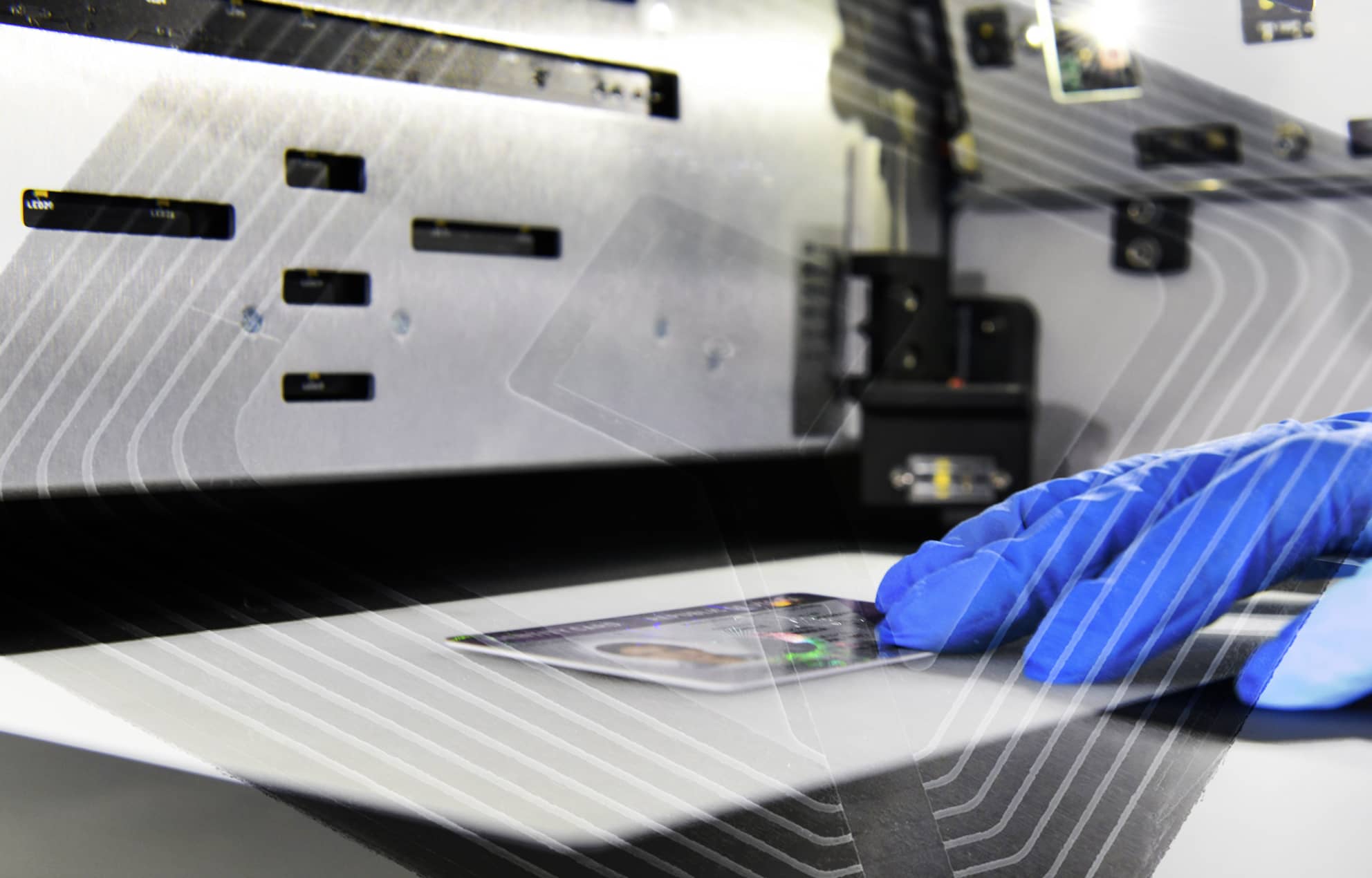

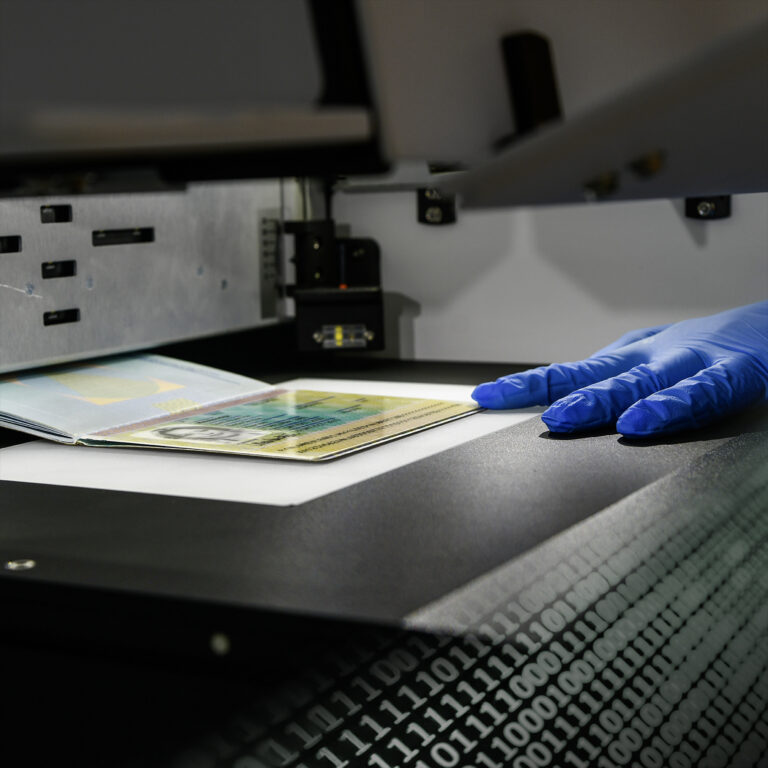

Perform rapid verifications of eChip data, using an integrated RFID module for seamless reading of embedded data.
INCREASED CONFIDENCE
PACE enabled extraction and analysis of all eChip data provides a higher level of authenticity assurance.
ENHANCED EXPERTISE
Quickly compare suspect documents against known authentic samples with improved Keesing reference databases.
24/7 PERFORMANCE
Precise and consistent all-LED illumination ensures reliable performance with little or no downtime due to bulb failure.
Versatile Applications
IN FIXED LOCATIONS

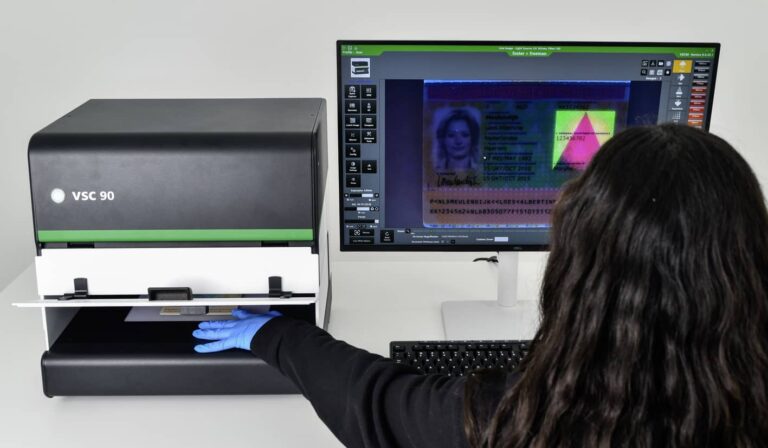

The VSC90 delivers a powerful yet compact solution in Laboratories and Dedicated Examination Facilities when operated via an external PC and monitor. Image annotation and calibrated measurements provide precise documentation, while the advanced comparison and enhancement toolset including 3D imaging, Focus Stacking and Focal Plane Merging, reveals hidden details.
MOBILE/FIELD DEPLOYMENT

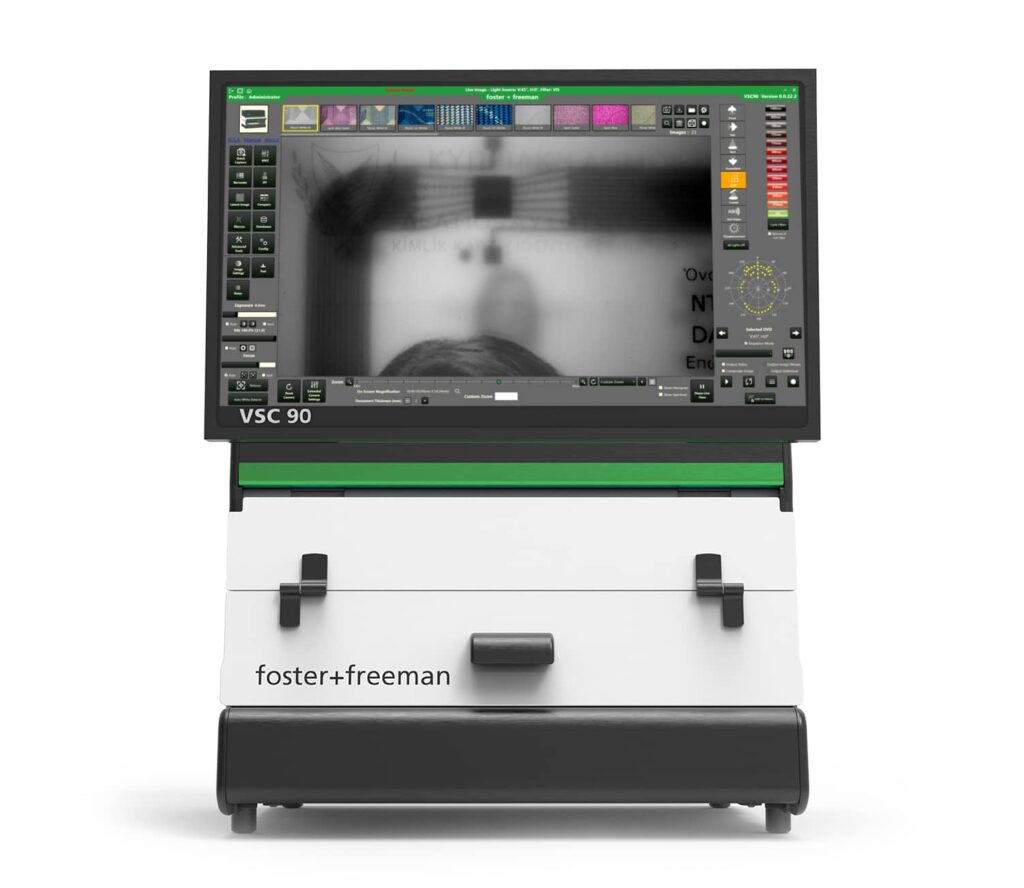

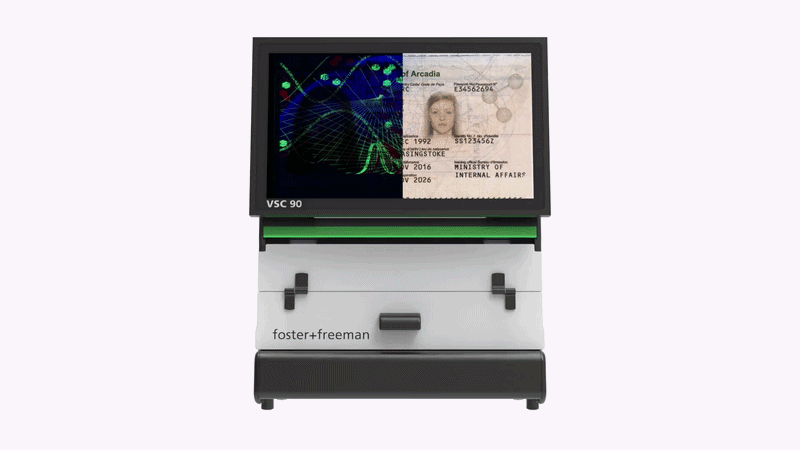

The VSC90-Mobile integrates an onboard PC and touchscreen monitor, creating a self-contained, field-ready system, for use in Remote Locations, at the Border, or in a Vehicle. In fast paced environments, eChip analysis and Facial Identification, coupled with automatic MRZ recognition and data decoders for barcodes, IPI, and
LetterScreen++, extracts critical information instantly.

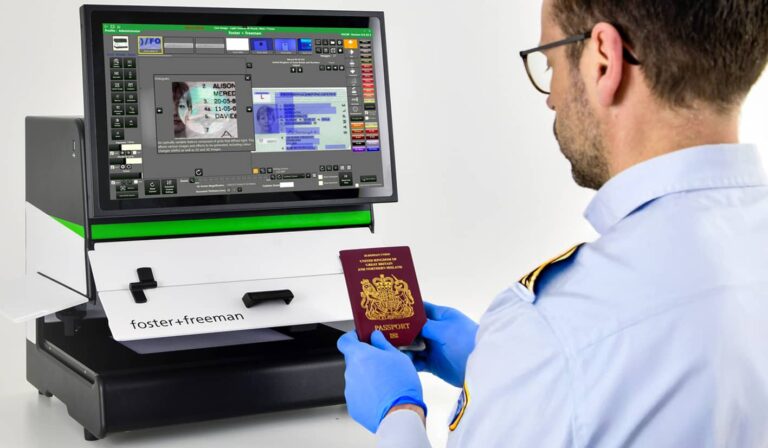

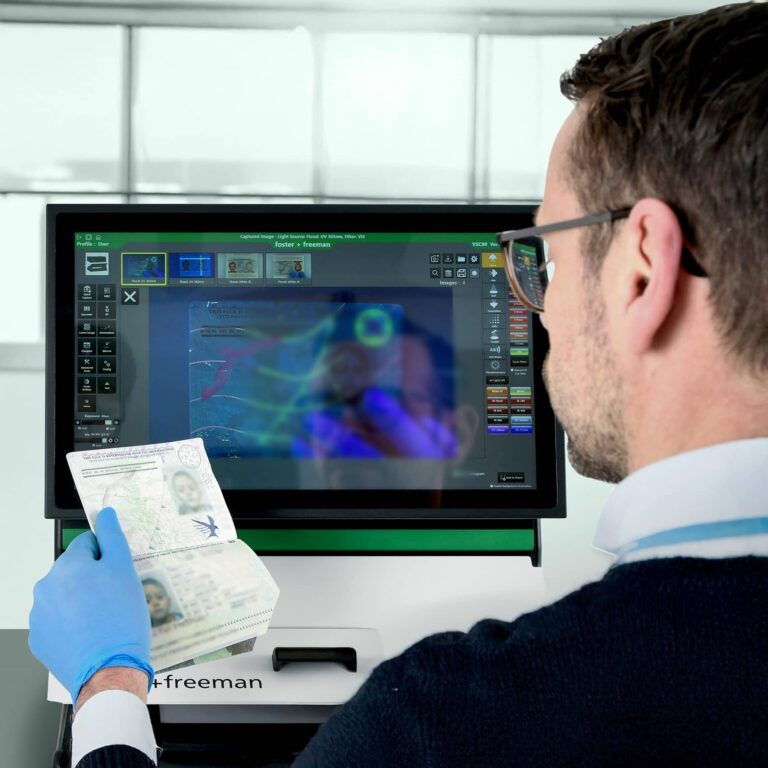

FIXED BORDER LOCATIONS
Whether at airports, ports, fixed checkpoints, or other stationary border security settings, VSC90 provides the tools needed to ensure confident travel and ID document authentication.
MOBILE BORDER SECURITY
With self-contained and mobile configurations available, VSC90 is an ideal tool to undertake watertight document examinations in dynamic situations where flexibility is key.
FORENSIC LABS
Offering examiners full control over powerful illumination and imaging features, the VSC90 is equipped to extract maximum forensic value from a wide range of evidence types.
SECURE FACILITIES
Wherever identification is a critical priority and security is crucial, VSC90 removes doubt regarding question identity or clearance documents to ensure facilities are not compromised.
CASINOS
Ensure accurate identification, security, and compliance, while providing customers with a seamless experience.
BANKS
VSC90 offers a full range of tools to facilitate examination of banknotes and documents used to commit fraud.
CARD GRADING
Reveal forensic levels of detail in trading cards and valuable collectables, ensuring accuracy and increasing confidence.
AND MORE…
From major museums and art galleries to auction houses and brand protection applications, VSC devices define versatility.
Digital Interrogations
With the ever increasing complexity of e-Passports and identity documents, it is vital that even the most compact and mobile examination devices are equipped to authenticate all levels of digital, embedded, and encoded security features. The VSC90 features a full suite of tools for in-depth digital interrogations, which can be further enhanced with the addition of fully-licensed data decoders.
Pass/Fail Authentication of e-Chip Biometric Data
Authenticate embedded and machine-readable data using proprietary VSC90 software, or upgrade to the optional Assure ID™ Sentinel toolset for rapid pass/fail examinations with a high degree of accuracy.
Decode Data Embedded Security Features
Optional VSC90 software modules decode data embedded within a document. Fully licenced decoders are available for widely used security features including IPI, ICI, and machine-verifiable Letterscreen++.
Physical Examinations

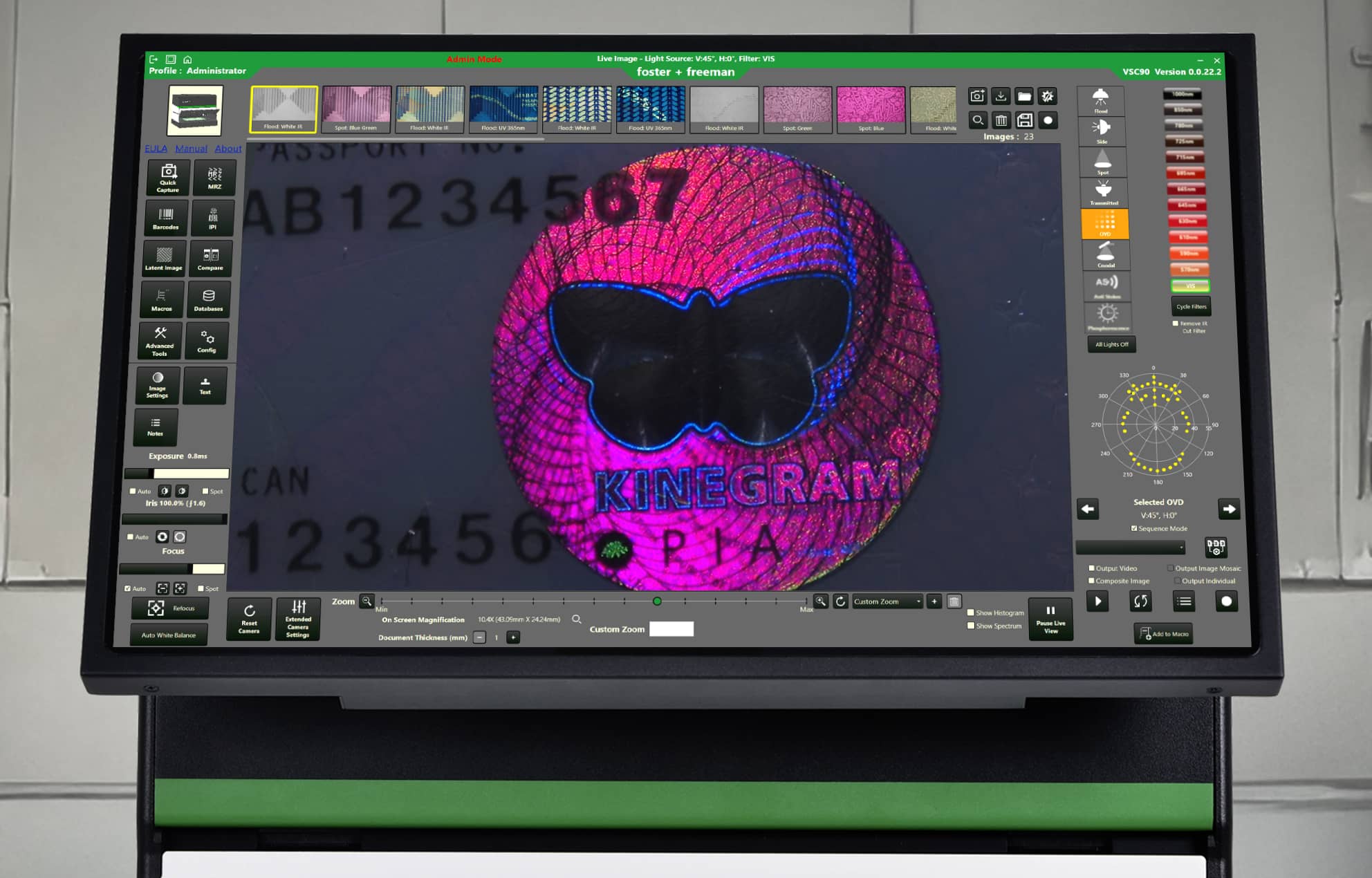

VSC90 delivers comprehensive multi-spectral illumination and imaging tools to inspect all physical elements of a document for signs of counterfeiting or tampering. Examine traditional and advanced security features with confidence, including pen and ink strokes, paper composition, cover construction, laminates, photographs, and stitching.

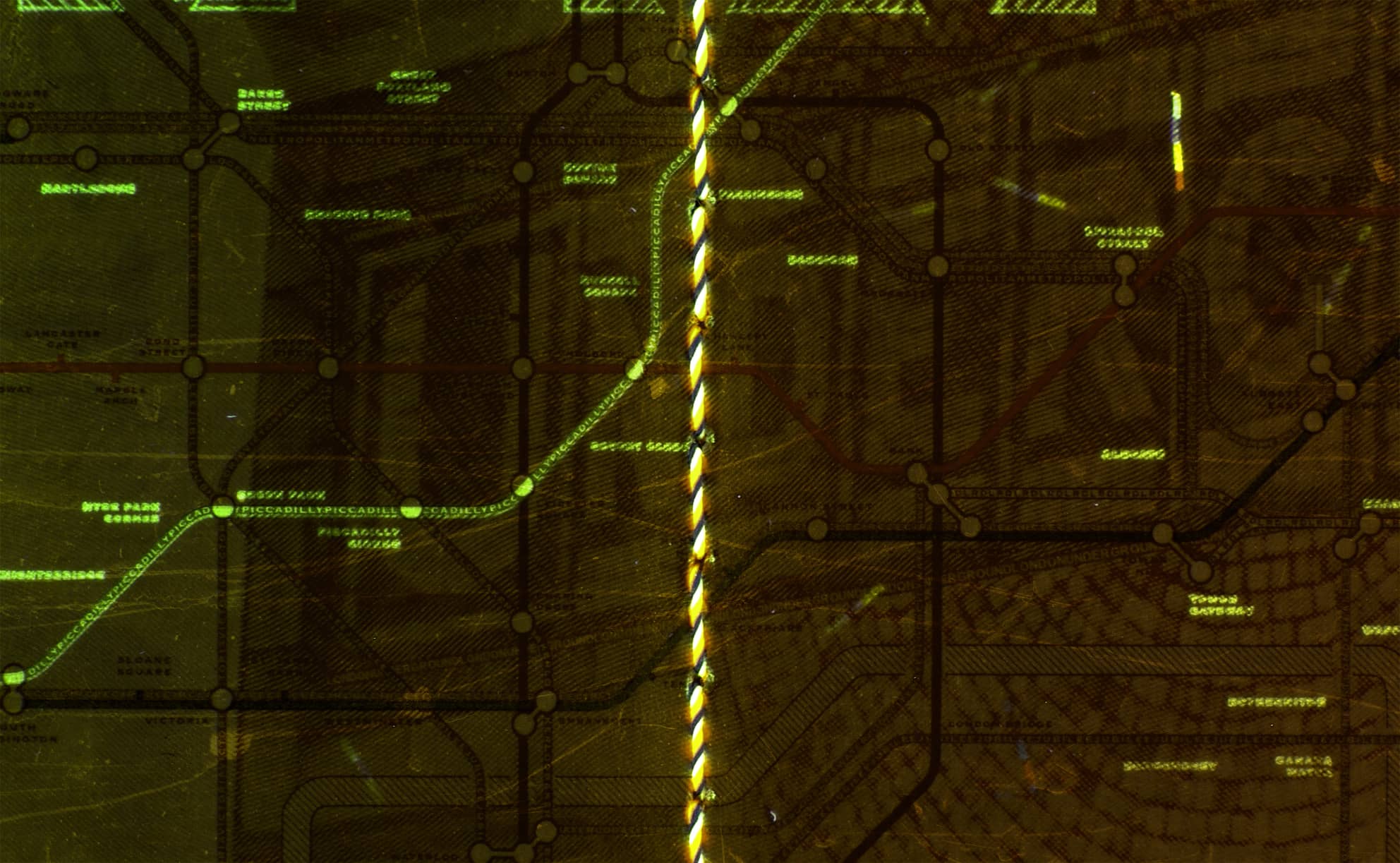

Reveal Signs of Tampering and Fraud
Capture high-resolution images of documents under multi-spectral UV-Vis-IR illumination, deploying proprietary software to detect and annotate any evidence of tampering or alteration.
Examine and Authenticate Physical Security Features
Utilise narrowband illumination to visualise document security features such as watermarks, holograms, special inks, and security threads, in addition to anti-tampering measures.

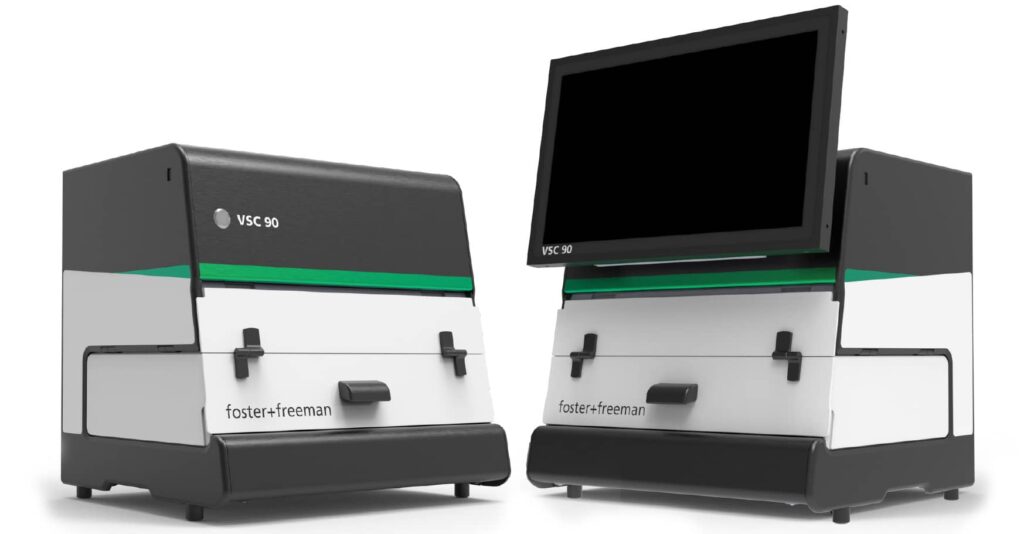

Two Distinct Hardware Variants
The VSC90 offers users a choice of two distinct hardware variants, which can be chosen based on whether the device will be used primarily in a fixed or mobile setting.
Every configuration offers comprehensive LED illumination and forensic-level eChip analysis, with a range of advanced featured to bolster capabilities and increase efficiency:

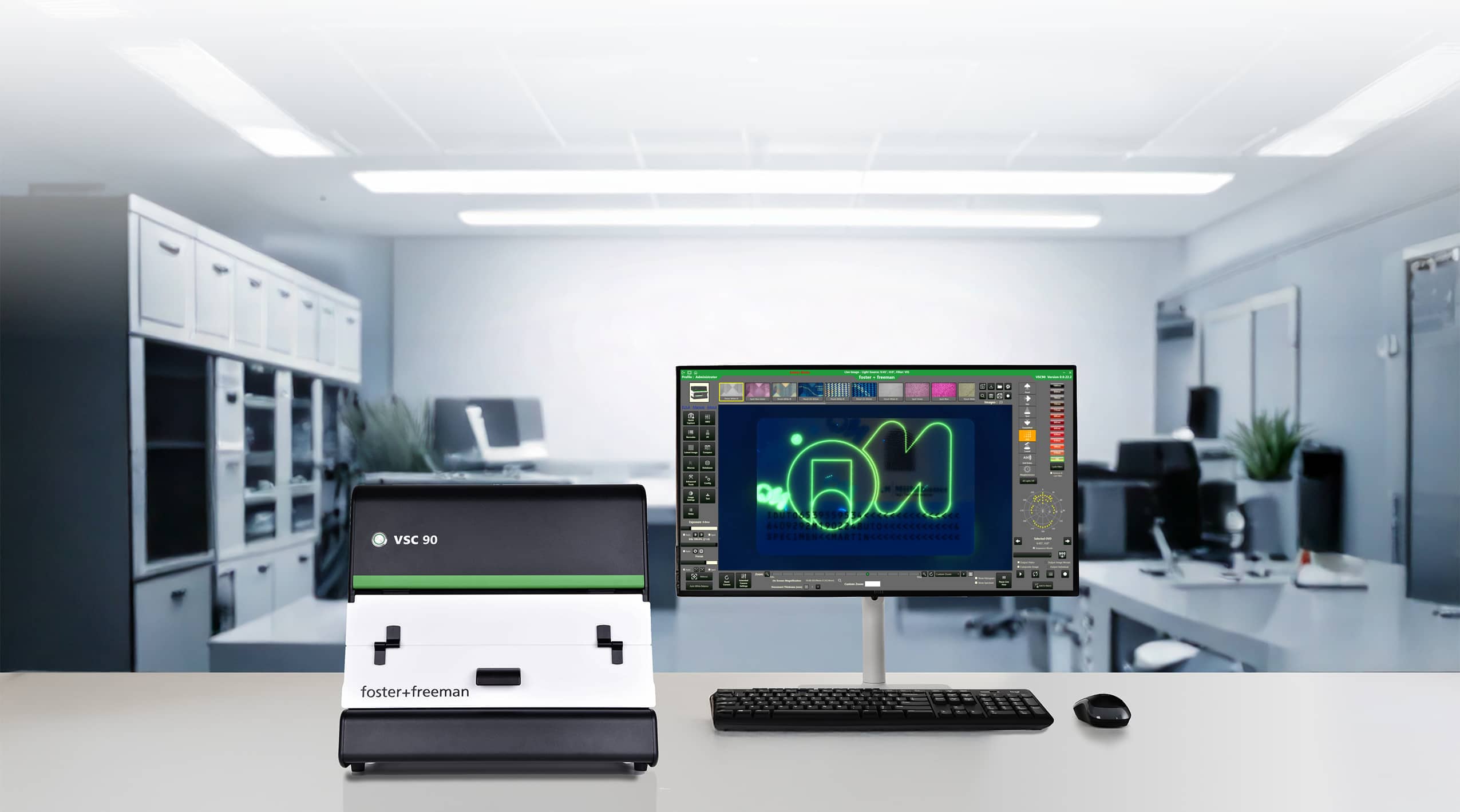

SUPPLIED WITH EXTERNAL
PC & MONITOR
FULLY-INTEGRATED
SOLUTION
Precision Optics for Optimal Images
Fast-Focus Live Imaging and Powerful Zoom
Full LED Illumination at All Wavelengths
Targeted and Controlled Illumination
Two Distinct Hardware Variants
The VSC90 offers users a choice of two distinct hardware variants, which can be chosen based on whether the device will be used primarily in a fixed or mobile setting.
Every configuration offers comprehensive LED illumination and forensic-level eChip analysis, with a range of advanced featured to bolster capabilities and increase efficiency:
Precision Optics for Optimal Images
Fast-Focus Live Imaging and Powerful Zoom
Full LED Illumination at All Wavelengths
Targeted and Controlled Illumination
Next-Generation eChip Analysis Software
Representing a major upgrade on the VSC40/80 and other systems in its class, advanced eChip analysis software integrated within the VSC90 sets new standards. Examiners can switch between Rapid Check mode for streamlined authentication, and PRO Examination mode, providing full control over all illumination, imaging and examination tools.
Robust eChip Analysis and Authentication
Achieve Comprehensive Security Validation
Ensure the Digital Integrity of Documents
Integrate with existing VSC infrastructure
Base System
VSC90:
– Optional embedded PC, requires external monitor.
VSC90 Mobile:
– Includes embedded PC and integral 17″ display.
Document Imaging
Next-Generation Camera:
– Colour/IR high resolution imaging
– Up to 57 lp/mm spatial resolution
– Twin-lens optical zoom
– Spectral range, 350-1100 nm
14x visible and IR imaging filters
Standard Illumination (All LED)
Incident Flood:
Visible and IR. UV-A, UV-B, UV-C.
Removable transmitted light base:
Flood – UV, Visible, IR.
Spot – UV, Visible, IR.
Oblique/Side:
Visible and IR.
Narrowband Spot:
– 10x LED Array
– 1023 Waveband Combinations
– Automated Fluorescence Scan Mode
Specialist Illumination
(All LED)
OVD – Combined Circular and Vertical 42x LED Array.
Coaxial – Large-area Segmented Array.
Anti-Stokes – IR 980nm.
3D Imaging – Requires optional software.
Phosphorescence – Pulsed UV-A.
RFID e-Chip Reader
Fully-Integrated reader:
– Dual Page antenna
– Read e-MRTD with document in-situ.
Core Software Features
- NEW VSCi Software with ‘Standalone Mode’
- User Specific ‘User Profile’ and ‘Gallery’
- Supports Windows 11 operating systems.
- Optimised for QHD (2560 X 1440) and 4K UHD (3840 x 2160) Display Resolutions
Image Viewing, Storage, Retrieval
- Live image mode with complete control of camera, lens, illumination, and filters.
- Realtime Field-of-View value displayed in mm.
- Supports multiple filetypes (BMP, JPG, J2K, PNG, TIFF, GIF, TGA) with embedded details.
- Image rotation, mirror, invert, and crop.
- Video recording of live image viewing with embedded details.
- False colour (pseudo colour), greyscale, and RGB channel separation options.
- NEW Yellow colour enhancement to visualise MIC or CPS codes (i.e. yellow dots).
- Digital zoom up to 16x
Comparison, Annotation, and Measurement
- Facilities to compare “Live vs Stored” images or “Stored vs Stored” images side-by-side, superimposed or subtracted, split, strobed, rotated and mirror inverted.
- Annotate captured images with text, shapes, and visual markers etc.
- Calibrated measurement of length, angle, area, and radius of a circle / ellipse etc.
- The measurement objects and values can be embedded in the saved image.
Security Feature Authentication
- NEW Secunet based software module to facilitate PACE with EAC capability for eMRTD chip data reading and authentication (BAC, PACE, EAC, and TA, PA, AA, CA).
- Automatically locate, extract, and decode MRZ data on Passports, Visas, ID cards.
- Read data with OCR technique, with data validation and discrepancies automatically flagged.
- IPI/Digital IPI Decoder
- LetterScreen ++ Decoder
Camera
Next-Generation FHD Camera: 2MP (1920×1080), spectral range 400-1000nm.
Static Minimum Field of View: 3.6 x 2.0mm.
Static Maximum Field of View: 216 x 120mm.
30x Optical Zoom, up to 135x On-Screen Magnification.
12x Long Pass Filters, Visible Light Bandpass Filter, Independent IR Cut Filter.
Standard Illumination (All LED)
Incident Flood – White, IR.
Incident UV Illumination – Long-wave (UV-A): 365nm, Mid-wave (UV-B): 308nm, Short-wave (UV-C): 255nm.
Transmitted – Flood: White, IR 850nm, Long-wave UV-A. Spot: White, IR 780nm and 850nm.
Oblique/Side – White and IR 850nm, Independent left and right illumination with height and angle adjustment.
Spot Illumination – Discrete LED Illumination for IR Fluorescence Examination, 10x LED Array.
Specialist Illumination
(All LED)
OVD – Combined Circular and Vertical Format 42x Array.
Coaxial – Enlarged Segmented Array.
Anti-Stokes – IR 980nm Continuous Live Imaging.
3D Imaging – White and IR with optional module.
Phosphorescence – Pulsed Long-wave UV-A.
Microspectrometer
PVMS Plug-in accessory available.
Absorption, reflectance, transmission and fluorescence spectra –
Spectral Range: 400-850nm, Spatial Resolution: 5nm.
Sampling area of diameter 67-200 microns.
Physical Features
Physical Dimensions: 420mm (W) x 370mm (D) x 405mm (H).
Weight: Approximately 17kg (main unit only).
Embedded RFID Reader for e-MRTD Examination.
Removeable Transmitted Light Base to provide larger working distance and field of view.
Positional Access Flaps with Safety Interlock for UV-B and UV-C light sources.
Core Software Features
- NEW VSCi Software with ‘Standalone Mode’
- User Specific ‘User Profile’ and ‘Gallery’
- Supports Windows 11 operating systems.
- Optimised for QHD (2560 X 1440) and 4K UHD (3840 x 2160) Display Resolutions
Image Viewing, Storage, Retrieval
- Live image mode with complete control of camera, lens, illumination, and filters.
- Realtime Field-of-View value displayed in mm.
- Supports multiple filetypes (BMP, JPG, J2K, PNG, TIFF, GIF, TGA) with embedded details.
- Image rotation, mirror, invert, and crop.
- Video recording of live image viewing with embedded details.
- False colour (pseudo colour), greyscale, and RGB channel separation options.
- NEW Yellow colour enhancement to visualise MIC or CPS codes (i.e. yellow dots).
- Digital zoom up to 16x
Comparison, Annotation, and Measurement
- Facilities to compare “Live vs Stored” images or “Stored vs Stored” images side-by-side, superimposed or subtracted, split, strobed, rotated and mirror inverted.
- Annotate captured images with text, shapes, and visual markers etc.
- Calibrated measurement of length, angle, area, and radius of a circle / ellipse etc.
- The measurement objects and values can be embedded in the saved image.
Security Feature Authentication
- NEW Secunet based software module to facilitate PACE with EAC capability for eMRTD chip data reading and authentication (BAC, PACE, EAC, and TA, PA, AA, CA).
- Automatically locate, extract, and decode MRZ data on Passports, Visas, ID cards.
- Read data with OCR technique, with data validation and discrepancies automatically flagged.
- IPI/Digital IPI Decoder
- LetterScreen ++ Decoder
Base System
VSC90:
– Optional embedded PC, requires external monitor.
VSC90 Mobile:
– Includes embedded PC and integral 17″ display.
Document Imaging
Next-Generation Camera:
– Colour/IR high resolution imaging
– Up to 57 lp/mm spatial resolution
– Twin-lens optical zoom
– Spectral range, 350-1100 nm
14x visible and IR imaging filters
Standard Illumination (All LED)
Incident Flood:
Visible and IR. UV-A, UV-B, UV-C.
Removable transmitted light base:
Flood – UV, Visible, IR.
Spot – UV, Visible, IR.
Oblique/Side:
Visible and IR.
Narrowband Spot:
– 10x LED Array
– 1023 Waveband Combinations
– Automated Fluorescence Scan Mode
Specialist Illumination
(All LED)
OVD – Combined Circular and Vertical 42x LED Array.
Coaxial – Large-area Segmented Array.
Anti-Stokes – IR 980nm.
3D Imaging – Requires optional software.
Phosphorescence – Pulsed UV-A.
RFID e-Chip Reader
Fully-Integrated reader:
– Dual Page antenna
– Read e-MRTD with document in-situ.
Core Software Features
- NEW VSCi Software with ‘Standalone Mode’
- User Specific ‘User Profile’ and ‘Gallery’
- Supports Windows 11 operating systems.
- Optimised for QHD (2560 X 1440) and 4K UHD (3840 x 2160) Display Resolutions
Image Viewing, Storage, Retrieval
- Live image mode with complete control of camera, lens, illumination, and filters.
- Realtime Field-of-View value displayed in mm.
- Supports multiple filetypes (BMP, JPG, J2K, PNG, TIFF, GIF, TGA) with embedded details.
- Image rotation, mirror, invert, and crop.
- Video recording of live image viewing with embedded details.
- False colour (pseudo colour), greyscale, and RGB channel separation options.
- NEW Yellow colour enhancement to visualise MIC or CPS codes (i.e. yellow dots).
- Digital zoom up to 16x
Comparison, Annotation, and Measurement
- Facilities to compare “Live vs Stored” images or “Stored vs Stored” images side-by-side, superimposed or subtracted, split, strobed, rotated and mirror inverted.
- Annotate captured images with text, shapes, and visual markers etc.
- Calibrated measurement of length, angle, area, and radius of a circle / ellipse etc.
- The measurement objects and values can be embedded in the saved image.
Security Feature Authentication
- NEW Secunet based software module to facilitate PACE with EAC capability for eMRTD chip data reading and authentication (BAC, PACE, EAC, and TA, PA, AA, CA).
- Automatically locate, extract, and decode MRZ data on Passports, Visas, ID cards.
- Read data with OCR technique, with data validation and discrepancies automatically flagged.
- IPI/Digital IPI Decoder
- LetterScreen ++ Decoder
